P1

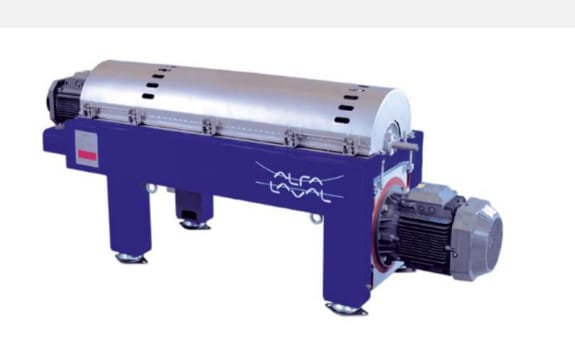

Alfa Laval P1 Decanter Centrifuge

The Alfa Laval P1 decanter centrifuge is designed for continuous solid-liquid separation in small- and medium-capacity process-industry installations. The range focuses on cost-efficient operation, reliability, compact installation and straightforward maintenance.

Surya Sankara Trading is an Authorised Distributor for Alfa Laval products, supporting industrial customers in Hyderabad, Telangana and other South Indian locations with product enquiries, application discussions and coordination for Alfa Laval separation equipment.

Selection of a suitable P1 model and operating configuration should be based on the feed composition, solids concentration, required capacity, particle characteristics, liquid-clarity requirement and desired solids dryness.

What is an Alfa Laval P1 decanter centrifuge?

The Alfa Laval P1 is a horizontal solid-bowl decanter centrifuge used to separate suspended solids from a liquid process stream.

It uses centrifugal force to accelerate sedimentation. Denser solid particles collect against the rotating bowl wall, while the clarified liquid forms an inner layer. A screw conveyor continuously transports the separated solids towards the conical end of the bowl for discharge.

The clarified liquid exits from the opposite end through adjustable plate dams.

This continuous separation process can help reduce sludge volume, simplify solids handling and limit the need for frequent operator intervention.

Applications of the P1 decanter range

The P1 range was developed for separation duties across the process industry. It is particularly suited to small- and medium-capacity installations where reliability, space utilisation and operating cost are important.

Potential applications may include:

• Industrial sludge dewatering

• Process-water clarification

• Separation of suspended solids from liquid streams

• Effluent-treatment processes

• Recovery of reusable liquid or solid material

• Volume reduction before sludge transport or disposal

• General process-industry solid-liquid separation

The actual suitability of a P1 decanter depends on the characteristics of the feed material and the required separation result. A process assessment should therefore be completed before selecting a model or proposing operating conditions.

How does the P1 decanter centrifuge work?

The process mixture enters the bowl through a stationary feed tube. An inlet distributor accelerates the material smoothly until it reaches the rotational speed of the bowl.

The separation process then follows four principal stages:

1. Feed acceleration

The incoming liquid-and-solids mixture is accelerated inside the rotating bowl.

2. Centrifugal sedimentation

The centrifugal force causes the denser solid particles to move towards the bowl wall. The lighter liquid phase remains closer to the centre.

3. Continuous solids conveying

A screw conveyor rotates in the same direction as the bowl but at a controlled differential speed. It transports the separated solids towards the conical section of the bowl.

4. Separate discharge

The dewatered solids leave through the solids-discharge openings. Clarified liquid flows over adjustable plate dams and exits through the liquid outlet.

The enclosed and continuous arrangement helps control the process while reducing manual solids handling.

Adjustable P1 operating parameters

An Alfa Laval P1 decanter can be adjusted to suit different separation requirements. Important operating parameters include:

Bowl speed

Bowl speed determines the centrifugal force acting on the feed. The appropriate speed depends on particle characteristics, liquid properties, separation objectives and mechanical operating limits.

Differential or conveying speed

The speed difference between the bowl and screw conveyor influences how quickly the solids are transported. Adjustment may affect solids dryness, liquid clarity, conveyor loading and wear.

Pond depth

Pond depth is the depth of the liquid layer inside the bowl. It can be adjusted to balance clarification performance and discharged-solids dryness.

Feed rate

The feed rate must correspond with the hydraulic capacity of the machine and the quantity of solids entering the decanter. Excessive feed or sudden fluctuations can reduce separation performance.

These settings should be established through application evaluation and controlled operating trials rather than by using a single setting for every process.

Main features of the Alfa Laval P1 range

Depending on the selected model and configuration, P1 decanter centrifuges offer features such as:

• Continuous solid-liquid separation

• Fully enclosed process sections

• Compact, modular construction

• Stainless-steel product-contact components

• Wear protection in erosion-prone areas

• Adjustable bowl and conveying parameters

• Electric bowl drive with V-belt transmission

• Planetary gearbox for conveyor operation

• Vibration dampers under the frame

• Integrated liquid and solids outlets

• Variable-frequency-drive options

• Basic Core Controller on applicable VFD-equipped configurations

The official Alfa Laval leaflet identifies P1-100, P1-200, P1-305, P1-405 and P1-505 designations. Model selection should not be made from the designation alone; capacity and configuration must be confirmed against the process data and equipment serial number.

Basic Core Controller

Applicable P1 decanters equipped with a variable frequency drive can use the Basic Core Controller.

The control package supports decanter operation and monitoring. Depending on the supplied configuration, it may provide:

• Operating control for the decanter

• Bowl and conveyor-drive coordination

• Bearing-temperature measurement

• Vibration monitoring

• Protection against unsuitable operating conditions

• Consistent control of selected process parameters

The exact controller, drive system and instrumentation fitted to an existing machine should be verified from its documentation or nameplate.

Benefits of a P1 decanter centrifuge

A correctly selected and operated P1 decanter may offer the following advantages:

Reduced sludge volume

Dewatering can reduce the amount of sludge requiring storage, transport or disposal.

Continuous operation

The feed, separation and phase-discharge stages take place continuously, reducing the need for batch handling.

Compact installation

The modular design can be useful where available plant space is limited.

Controlled separation

Bowl speed, conveying speed, pond depth and feed rate can be adjusted to balance liquid clarity and solids dryness.

Reduced operator intervention

A suitably automated decanter can operate with limited routine intervention, although inspection and preventive maintenance remain essential.

Protected process-contact areas

Stainless-steel wetted components and protection in wear-prone areas support reliability in suitable industrial applications.

Actual capacity, power consumption and separation results depend on the P1 model, feed material, operating parameters and condition of the machine.

Information needed to assess a P1 application

Please provide the following information when enquiring about an Alfa Laval P1 decanter centrifuge:

• Industry and application

• Description of the feed material

• Required flow rate

• Feed temperature

• Percentage of suspended solids

• Particle size and density

• Liquid density and viscosity

• Chemical composition and pH

• Required clarified-liquid quality

• Required discharged-solids dryness

• Daily operating hours

• Available electrical supply

• Installation-space limitations

• Existing model and serial number, when applicable

A representative sample or separation test may be required when the behaviour of the process material is uncertain.

P1 decanter maintenance and spare-parts enquiries

Routine inspection and preventive maintenance are important because the bowl and conveyor operate at high rotational speeds.

Maintenance requirements may include checking:

• Bowl and conveyor condition

• Bearings and bearing temperatures

• Gearbox condition and lubrication

• Seals and gaskets

• Drive belts and motors

• Vibration levels

• Solids-discharge ports

• Feed zone and inlet distributor

• Conveyor flights and wear protection

• Control-panel alarms and safety interlocks

Spare parts must be identified using the complete model designation, serial number and installed configuration. Parts from different P1 sizes should not be assumed to be interchangeable.

For service-related requirements, also visit our decanter centrifuge service page.

Alfa Laval P1 decanter support in Hyderabad and South India

Surya Sankara Trading supports industrial customers in Hyderabad, Telangana and other South Indian locations with enquiries concerning Alfa Laval P1 decanter centrifuges.

Support may include:

• Understanding the separation requirement

• Collecting process and operating data

• Identifying the installed P1 model

• Product and configuration enquiries

• Spare-parts identification support

• Coordination for inspection and service requirements

• Discussions concerning maintenance or replacement options

Surya Sankara Trading is an Authorised Distributor for Alfa Laval products. Product availability, replacement recommendations and service scope must be confirmed for each enquiry.

Frequently asked questions about the Alfa Laval P1 decanter

What is the Alfa Laval P1 decanter centrifuge used for?

The P1 is used for continuous solid-liquid separation in process-industry applications. Possible duties include sludge dewatering, process-liquid clarification and separation of suspended solids from liquid streams.

Is the P1 suitable for industrial sludge dewatering?

The range can be used for industrial sludge dewatering, subject to the sludge composition, particle properties, solids concentration, required capacity and desired dryness.

How does a P1 decanter separate solids from liquid?

The rotating bowl creates centrifugal force that moves denser solids towards the bowl wall. A screw conveyor transports those solids towards the discharge end, while clarified liquid exits through adjustable plate dams.

Which P1 decanter models are identified in the product range?

The official product leaflet identifies the P1-100, P1-200, P1-305, P1-405 and P1-505. The appropriate model must be selected using process data rather than model name alone.

Can the P1 operating parameters be adjusted?

Yes. Depending on the configuration, bowl speed, conveying speed, pond depth and feed rate can be adjusted to balance liquid clarity, solids dryness, capacity and operating stability.

Does every P1 decanter include the same controller?

No. Control and drive configurations can vary. The official leaflet states that P1 decanters equipped with a variable frequency drive as standard are supplied with the Basic Core Controller. The installed configuration should be verified individually.

Can the P1 produce dry solids?

A P1 decanter can dewater and compact separated solids, but the achievable dryness depends on feed composition, particle properties, bowl speed, differential speed, pond depth and feed rate.

What information is needed for P1 spare-parts identification?

Provide the complete model, serial number, part description, photographs of the nameplate and, when available, the original part number or equipment documentation.

Is the Alfa Laval P1 still available as a new machine?

Current product and model availability should be confirmed with Alfa Laval or an authorised distributor. An existing P1 installation should be assessed using its model, serial number, condition and operating requirement before a replacement is recommended.

Where can I enquire about the Alfa Laval P1 in Hyderabad?

Industrial customers can contact Surya Sankara Trading in Hyderabad for application discussions and coordination concerning Alfa Laval products.
