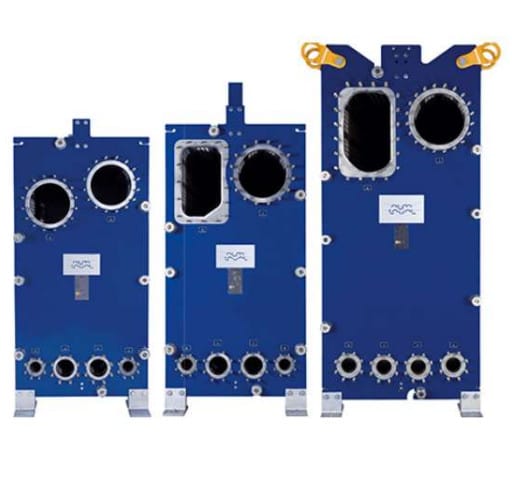

alfavap

How Does an AlfaVap Rising Film Evaporator Work?

The liquid feed enters the evaporator through connections near the bottom of the plate pack. Heating steam flows through the welded channels and transfers heat across the plates to the product flowing inside the gasketed channels.

As evaporation takes place, the vapour-liquid mixture rises through the plate channels and leaves through the upper outlet. A separate vapour separator divides the vapour phase from the concentrated liquid. Depending on the process, the concentrate may proceed to another evaporation effect or leave as the final product.

Applications of AlfaVap Plate Evaporators

AlfaVap may be evaluated for suitable concentration and evaporation duties involving:

• Cane and beet sugar processing

• Sugar syrups and sweeteners

• Bioethanol and ethanol stillage

• Caustic solutions

• Fruit juices and purées

• Milk, whey and plant proteins

• Fermentation products

• Coffee, tea and herbal extracts

• Gelatine and collagen solutions

• Thermosiphon reboiler applications

Application suitability must be confirmed using complete process data. Not every AlfaVap configuration is suitable for every liquid or operating condition.

Benefits of AlfaVap Evaporation Technology

Compact plate-and-frame construction

The plate-based configuration can require less installation height and floor space than many conventional tubular evaporation arrangements, depending on system design.

Suitable for concentrated and viscous liquids

The specialised plate geometry is designed to support rising-film evaporation when product concentration and viscosity increase.

Short product residence time

Low hold-up volume and rising-film operation can limit the period during which the product is exposed to heat, which is important when processing suitable heat-sensitive liquids.

Flexible heat-transfer area

Depending on the frame and configuration, plate cassettes may be added or removed when process requirements change. Any capacity modification requires a proper thermal and mechanical review.

Accessible inspection and cleaning

The plate-and-frame construction provides access for inspection and appropriate mechanical cleaning. Cleaning-in-place may also be used according to the product, deposits, gasket compatibility and applicable manufacturer instructions.

Application Data Required for AlfaVap Selection

Customers should provide the following information:

• Product name and composition

• Feed flow rate

• Initial and required final concentration

• Feed temperature

• Required evaporation capacity

• Available steam pressure and temperature

• Boiling temperature and operating pressure

• Product viscosity at different concentrations

• Density and specific heat

• Fouling and scaling tendency

• Product sensitivity to temperature

• Required number of evaporation effects

• Cleaning method and chemicals

• Material compatibility requirements

• Available installation space

Accurate application data is necessary to evaluate the evaporator configuration, heat-transfer area, materials and associated process equipment.

AlfaVap Evaporator Support in Hyderabad and South India

Surya Sankara Trading Pvt. Ltd. is an Authorised Distributor for Alfa Laval products, supporting AlfaVap rising film evaporator enquiries from Hyderabad, Telangana and other South Indian locations.

We assist customers with initial application discussions and coordination for sugar, food, bioethanol, chemical and other suitable concentration duties. Customers should share their process, product and utility data before equipment selection.

Frequently Asked Questions About AlfaVap

What is an AlfaVap rising film evaporator?

AlfaVap is a semi-welded plate evaporator designed for rising-film evaporation and liquid-concentration processes. It may be considered for process liquids with increasing concentration and viscosity, subject to application assessment and material compatibility.

Is AlfaVap a heat exchanger or an evaporator?

AlfaVap uses semi-welded plate heat-exchanger technology but is specifically configured for evaporation. Heating steam condenses in welded channels while the process liquid evaporates inside separate gasketed channels.

What products can be concentrated using AlfaVap?

Potential applications include sugar solutions, sweeteners, bioethanol streams, caustic solutions, fruit products, proteins, fermentation products and selected herbal extracts. Suitability depends on viscosity, solids, fouling behaviour, temperature sensitivity and required concentration.

Is AlfaVap suitable for viscous liquids?

AlfaVap is designed for evaporation applications where product concentration and viscosity increase. However, the complete viscosity profile and concentration range must be evaluated because extremely viscous or heavily fouling products may require another evaporation technology.

Can AlfaVap be used in sugar processing?

Yes. Sugar refinery and sweetener evaporation systems are established AlfaVap applications. Selection depends on feed concentration, required final concentration, evaporation load, available steam, operating pressure, scaling tendency and cleaning requirements.

Can AlfaVap be used as a thermosiphon reboiler?

AlfaVap may be configured for suitable thermosiphon reboiler duties. Process fluid properties, circulation behaviour, heat load, operating pressure and vapour-liquid separation requirements must be reviewed during selection.

How is an AlfaVap evaporator cleaned?

Cleaning can involve an appropriate cleaning-in-place procedure or mechanical cleaning after opening the accessible plate pack. The method, chemicals, temperature and duration must be compatible with the plates, gaskets and process deposits.

Can AlfaVap capacity be increased later?

Depending on the original frame and system configuration, heat-transfer capacity may be adjusted by modifying the plate pack. Pumps, piping, separator vessels, utilities and process controls must also be reviewed before changing capacity.

What factors influence AlfaVap performance?

Performance depends on feed rate, initial and final concentration, viscosity, boiling temperature, steam conditions, temperature difference, fouling behaviour, pressure drop and vapour-liquid separation. Reliable evaluation requires representative process data.

Where can I enquire about AlfaVap evaporators in Hyderabad?

Customers in Hyderabad, Telangana and South India can contact Surya Sankara Trading Pvt. Ltd., an Authorised Distributor for Alfa Laval products, for AlfaVap product enquiries and initial application discussions.
